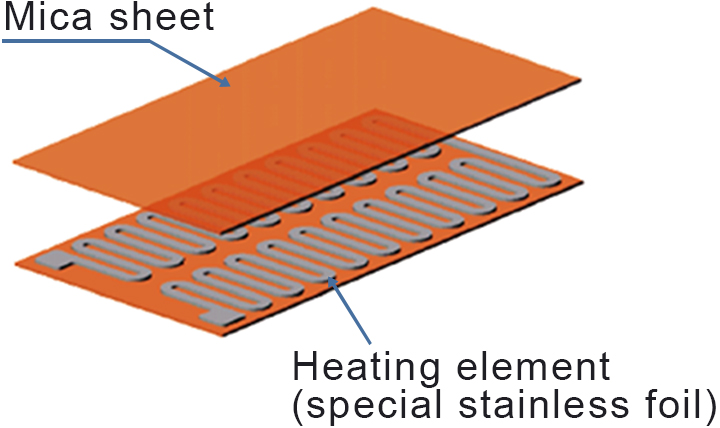

Basic structure
| General specifications | |
|---|---|
| Max. manufactuable size | Up to 1480 × 1500 (mm) |
| Heater heat resistance temperature | ～500℃ |
| Foil material | Special stainless foil |
| High temperature specifications | |
| Max. manufactuable size | Up to 1480 × 1500 (mm) |
| Heater heat resistance temperature | ～700℃ |
| Foil material | Metallic foil |
| Electrical specifications | |
| Dielectric strength voltage | AC1800V/min |
| Dielectric resistance | 100MΩ or more(DC500V) |
| Resistance deviation | within ±10%(at cooling) |
| Others | |
| Terminal treatment | Metallic foil exposure, eyelet, spot welding, stud bolt |
| Other | Supports dust proof treatment |
Features
- Fast response
-
High watt density and thin at about 1mm thickness giving low heating capacity enabling
rapid heating and cooling. - Homogeneous thermal distribution
- Sheet shaped element gives more evenly distributed heat than a sheath heater.
- High heating efficiency
-
Sheet shaped element gives higher contact area with heated objects for improved heating

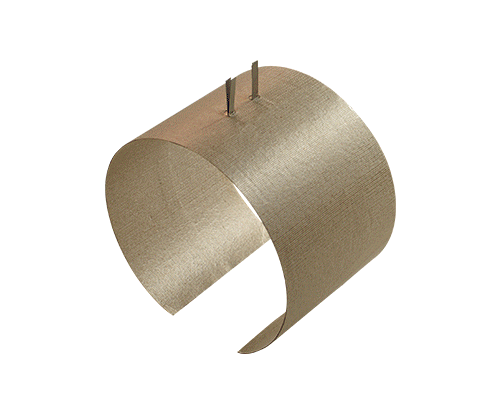

efficiency. - Supports a wide range of shapes
-

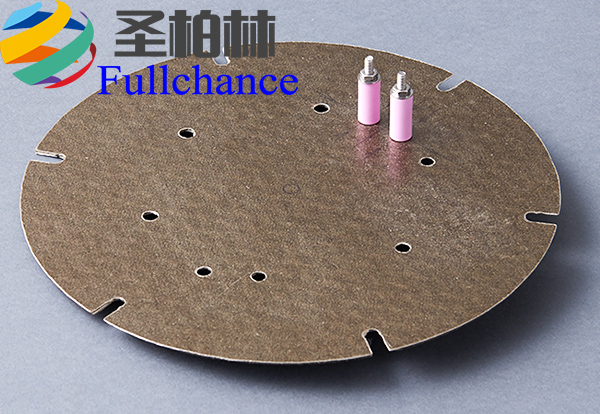

Round, triangular, hole punched, notched and other machined shapes are supported to match
the heated object.
Applications
- Industrial device
-
Mold heating, medical devices, semiconductor manufacturing equipment, LCD manufacturing
equipment and more
