Alumina heaters are used for portable water heating such as the heating of sake.Due to their small size, high power, and high insulation, the direct heating of the water becomes possible. With a built-in sensor, it can be used for compact portable water heating.

Configuration	Dimension(mm)			Power	Resistance tolerance
	(OD)	(ID)	(L)		+/-10%
Threaded Through Tube Ceramic Heater	Φ15.0	Φ10.0	150	3500-4000
Semi-closed Heating Tube	Φ15.0	Φ10.0	135	3500-4000

Tube Ceramic Heater：

The measured water can be heated to 98~100℃ immediately. The experimental data in the figure above shows that the outlet water temperature is 99.6℃

Thick film heater：

Thick film heater and water temperature curve：

The temperature of the thick film heater can heat up to 94℃ , and the heating rate is relatively slow, with the heating time exceeding 10s

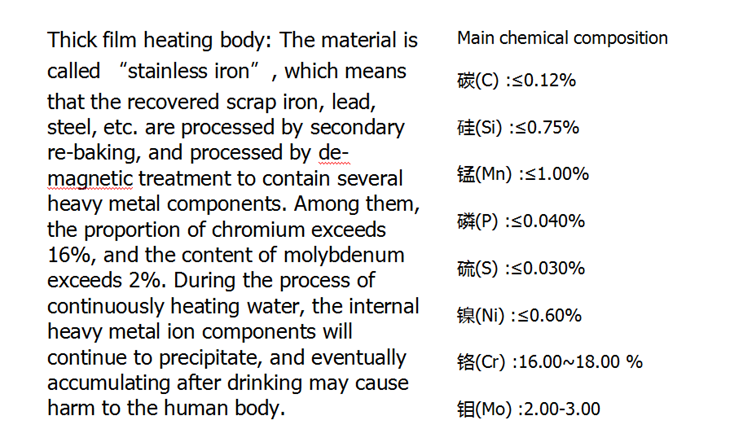

Metal precipitation：

Metal precipitation hazard：

Metal precipitation：Tube Ceramic heater: The main component is alumina. It has the advantages of corrosion resistance, high temperature resistance, long life, high efficiency and energy saving, uniform temperature, good thermal conductivity and fast thermal compensation. It does not contain Pb, Cd, Hg, Cr6+, PBB or PBDE , in line with EU RoHS and other environmental requirements.

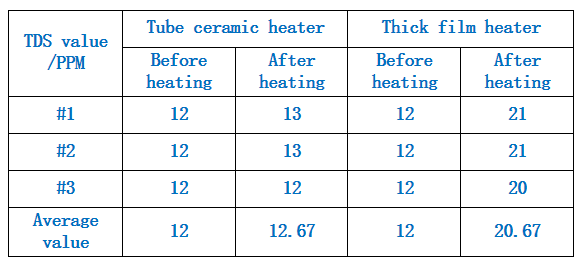

Metal ion precipitation test：

Tested:thick film heating module does have ion precipitation when water heating, the possibility of heavy gold ion precipitation will be very large, long-term drinking is likely to cause harm to the human body; and ceramic heating tube will be much cleaner in this respect, There are basically no other ions that harm the human body.

Water heating efficiency：The thick film heater and tube ceramic heater were replaced respectively for efficiency conversion test. Under different heating temperatures, the efficiency of tube ceramic heater was 1%~5% higher than that of thick film heater.
