Transmittance Test - Measure the transmission of HCK optical conductive film with MFS630, 550nm band:
Transparent thin‑film heating sheet
The transparent thin‑film heating element covers the entire surface of the heater, delivering a very rapid and safe heating profile for the product. Featuring an ultra‑thin thin‑film heater structure, it can be affixed on either side using high‑performance double‑sided adhesive or ordinary double‑sided adhesive without obstructing visibility, with a light transmittance above 70%‑80%.
Features
• High light transmittance up to 85%, higher than that of conventional glass.
• Resistant to strong light; image quality remains clear when attached to the screen.
• Ultra‑light and ultra‑thin. Heats up rapidly and evenly, reaching the set temperature (50℃) within 5 seconds after power‑on, with a maximum temperature resistance of 120℃.
• Self‑adhesive for easy application, space‑saving, simple and convenient to operate.
• Customizable sizes, specifications and shapes can be developed according to customer requirements.
• Voltage can be designed and produced ranging from 1.5V to 380V.
Common terms: Transparent Film Heating Element, Film Heating Element, Flexible Heating Component, Superconductive Flexible Heating Sheet.
Scientific Name: Transparent Film Heating Element
Specifications and Features
Comparison of Insulating Materials:
Scientific Name: Transparent Film Heating Element
Specifications and Features
|
AC/DC 1‑1000V
Wattage Designable for values above 0.1
Maximum temperature 130℃
Common operating temperature 25℃~120℃
Thickness 0.1mm
|
Comparison of Insulating Materials:
The insulating materials listed in the table below are commonly used by Fullchance. If you need heating sheets that can withstand higher temperatures, or insulating materials capable of withstanding higher dielectric breakdown voltages or with other special properties, you may also adopt the solutions we have selected for you below.
|
|
|
insulating material
|
|
|
|
Features of the Heater
|
0.002" Kapton shall be bonded with 0.001" FEP adhesive
|
0.008" glass‑reinforced silicone rubber Teflon
|
Mica sheets with a thickness of 0.1mm~1mm
|
0.005” Polyester with 0.001” insulating adhesive
|
|
Overview of Appearance
|
Transparent, amber‑colored Polyi‑miele film
|
The red elastomer is placed on the glass fiber base
|
white or green mica flakes
|
transparent sheet
|
|
Temperature range
|
-200 to 280℃
(-328 to 536℉) |
-200 to 260℃
(-328 to 500℉) |
-200 to 1000℃
(-328 to 1832℉) |
-200 to 120℃
(-328 to 248℉) |
|
Dielectric strength
|
1000 VRMS
|
1000 VRMS
|
1000 VRMS
|
1000 VRMS
|
|
Exceeds component maximum
|
0.010”
(0.25mm) |
0.020”
(0.5mm) |
0.017”
(0.43mm) |
0.008”
(0.2mm) |
|
The maximum designable watts per square inch at room temperature of 25℃
|
1inch²/7w
|
1inch²/7w
|
1inch²/15W
|
1inch²/3.5W
|
|
Heater softness
|
Best: 0.03” (0.75mm) minimum bend radius
|
Good: Minimum bend radius of 0.125” (3.2mm)
|
Better: 0.006” (1.52mm) minimum bend radius
|
Better: Minimum bend radius of 0.039'' (1mm)
|
|
Placement method
|
※ Elastic strap
※ #11 Heat‑resistant cement ※ #10 PSA ※ #20 Stretch tape |
※Elastic strap
※#6 heat‑resistant cement ※#12 PSA ※curing ※#20 stretch tape |
※Elastic band
※#11 Heat‑resistant cement ※#10 PSA ※Fixture fixing |
※Elastic strap
※#6 Heat‑resistant cement ※#12.PSA ※Hardening ※#20 Ductile tape |
|
Remarks
|
Due to Kapton's stability and solvent resistance in vacuum, it is often used in medical and aerospace applications.
Withstands harsh environments |
Silicone rubber is cheaper than Kapton. It is used in industrial and commercial applications and is usually hardened onto metal parts.
|
Suitable for high‑temperature environments or applications requiring ultra‑high temperatures, featuring a uniform‑temperature design
|
Polyester shares many properties of Kapton, yet it is a more cost‑effective option and features better water resistance.
|
Examples

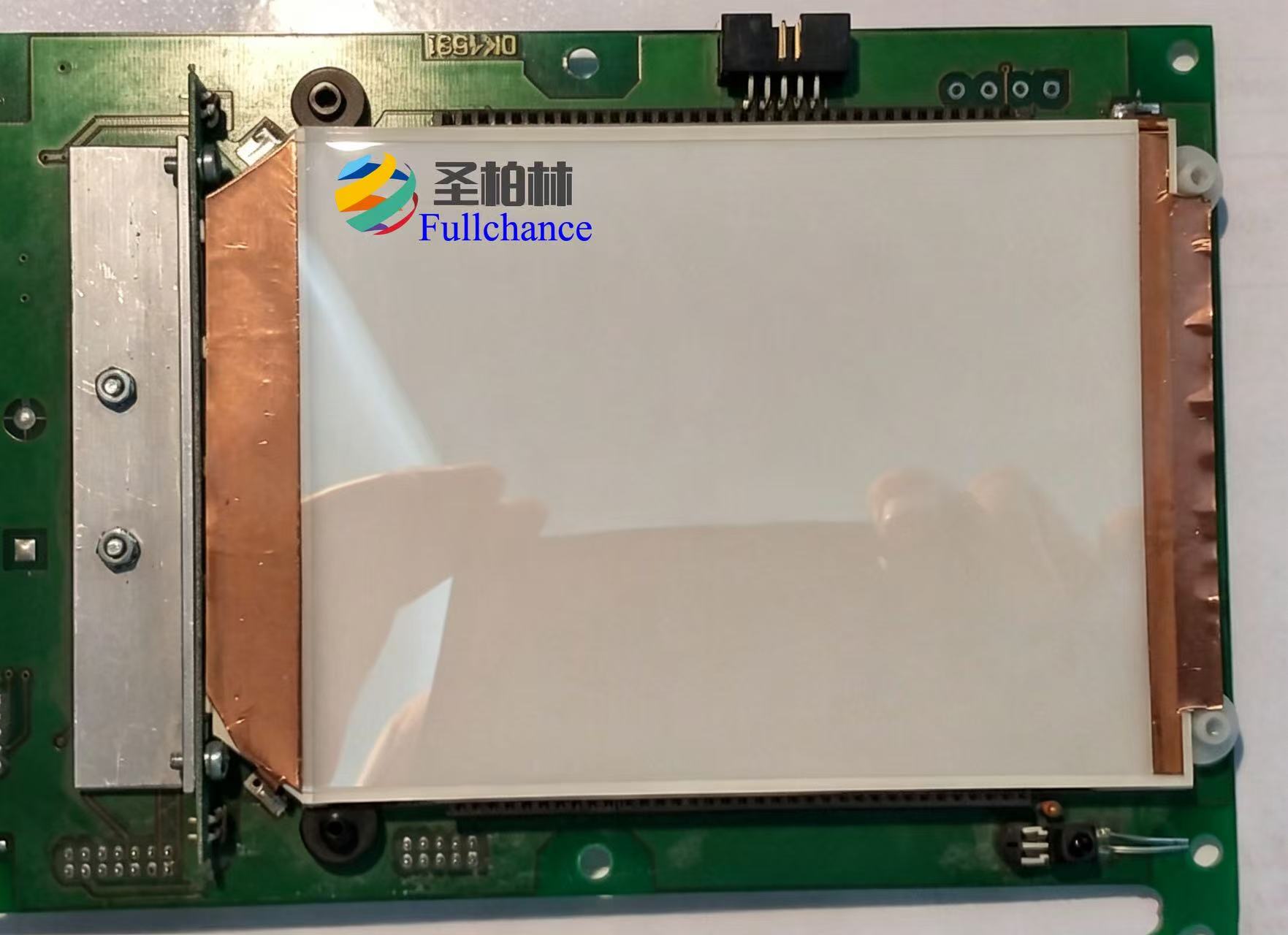

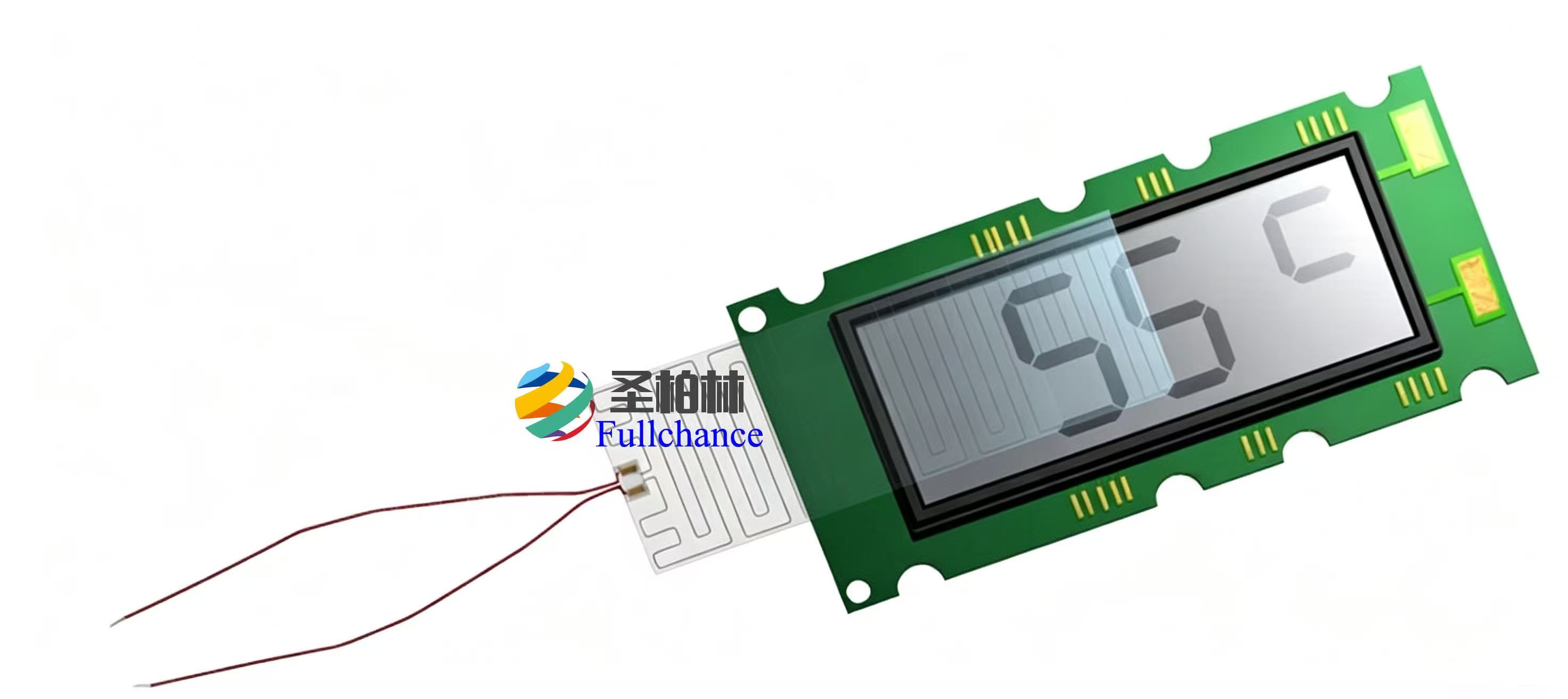

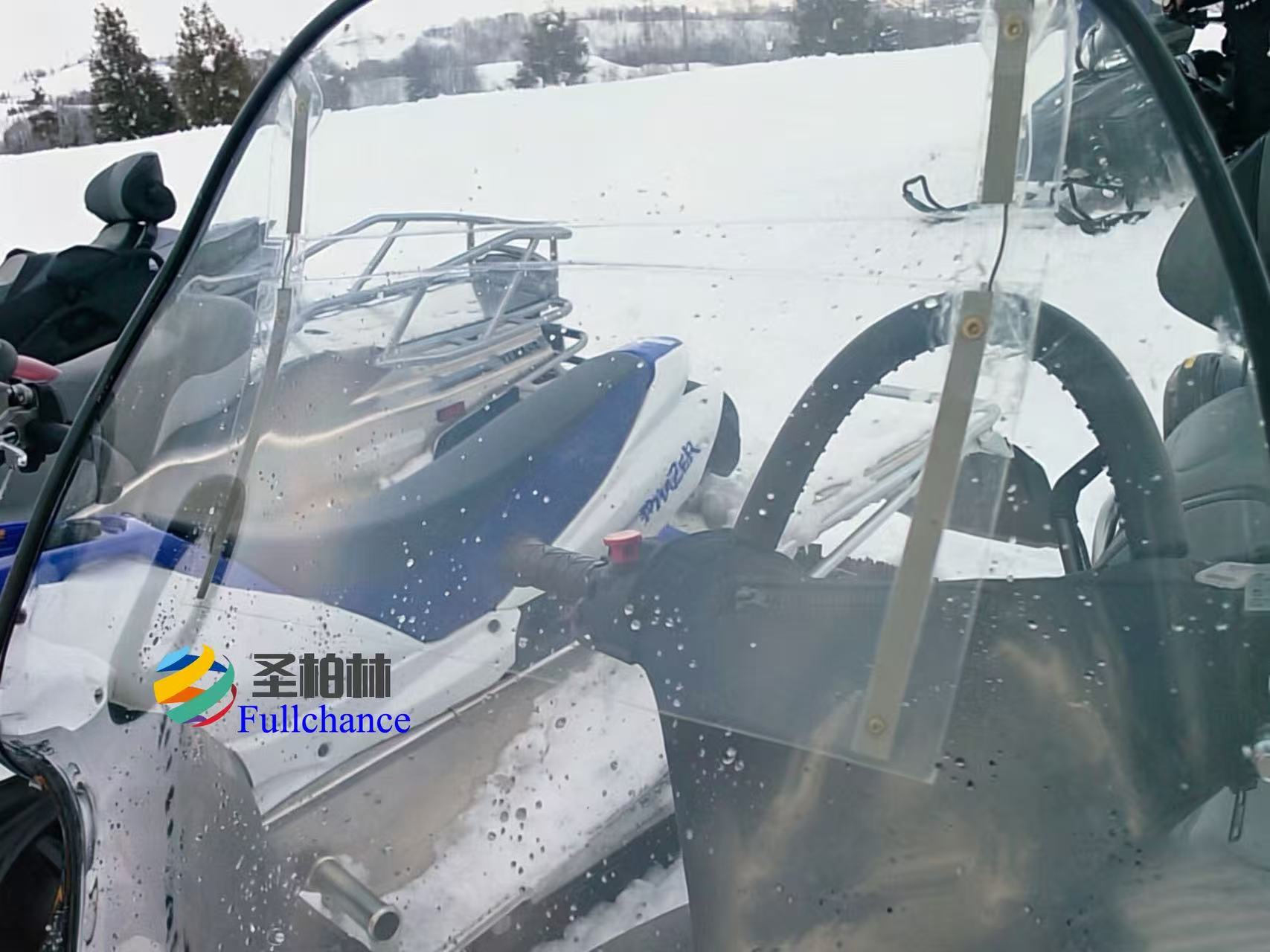

Anti‑fogging for automotive glass, optical lenses, LCD screens, indoor and outdoor instruments, bathroom mirrors, televisions, rear‑view mirrors, safety helmet lenses, windshields, instrument panels, industrial screens, outdoor calculators, outdoor computers, cameras, glasses, mirrors and other items, with broader product‑integrated applications.

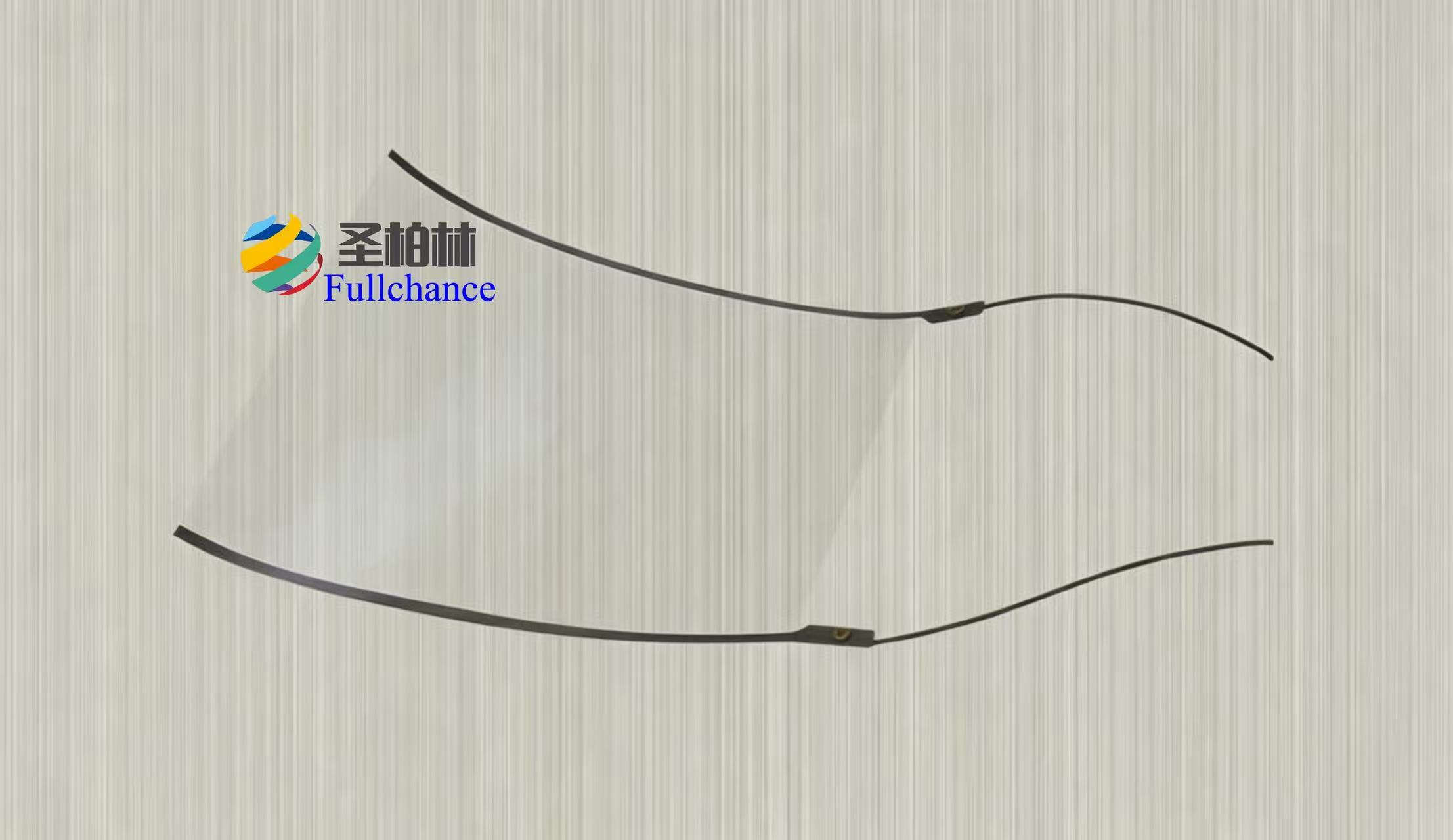

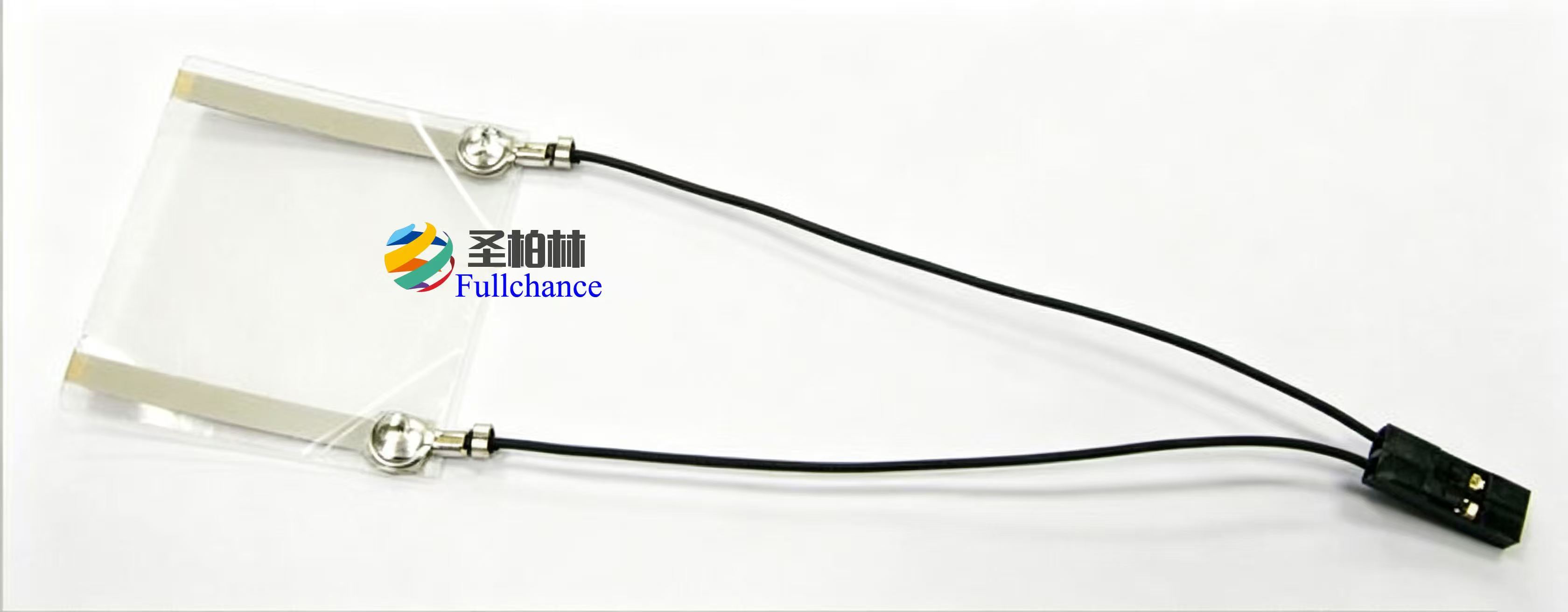

Actual Product (I)
Fullchance has designed more than 5,000 types of heating sheets. If samples of similar specifications are in‑stock within the company, we can provide them for your quick testing.
For every newly‑developed product, Fullchance super‑thermal‑conduction team elevates technical standards and maintains close alignment with customers. We possess the most comprehensive production equipment for heating sheets and heaters nationwide.
- We operate a fully complete production line
- 100% full‑item quality inspection
- Short sample delivery lead time
- Fast delivery
- Customization is welcome for industry peers
- Uniform‑temperature design
- ODM and OEM services are accepted
- Application engineers can be dispatched for on‑site discussions of development projects
These heating sheets can all be custom‑made to meet your requirements. Feel free to contact us for inquiries. Thank you for your visit.
