Product Introduction

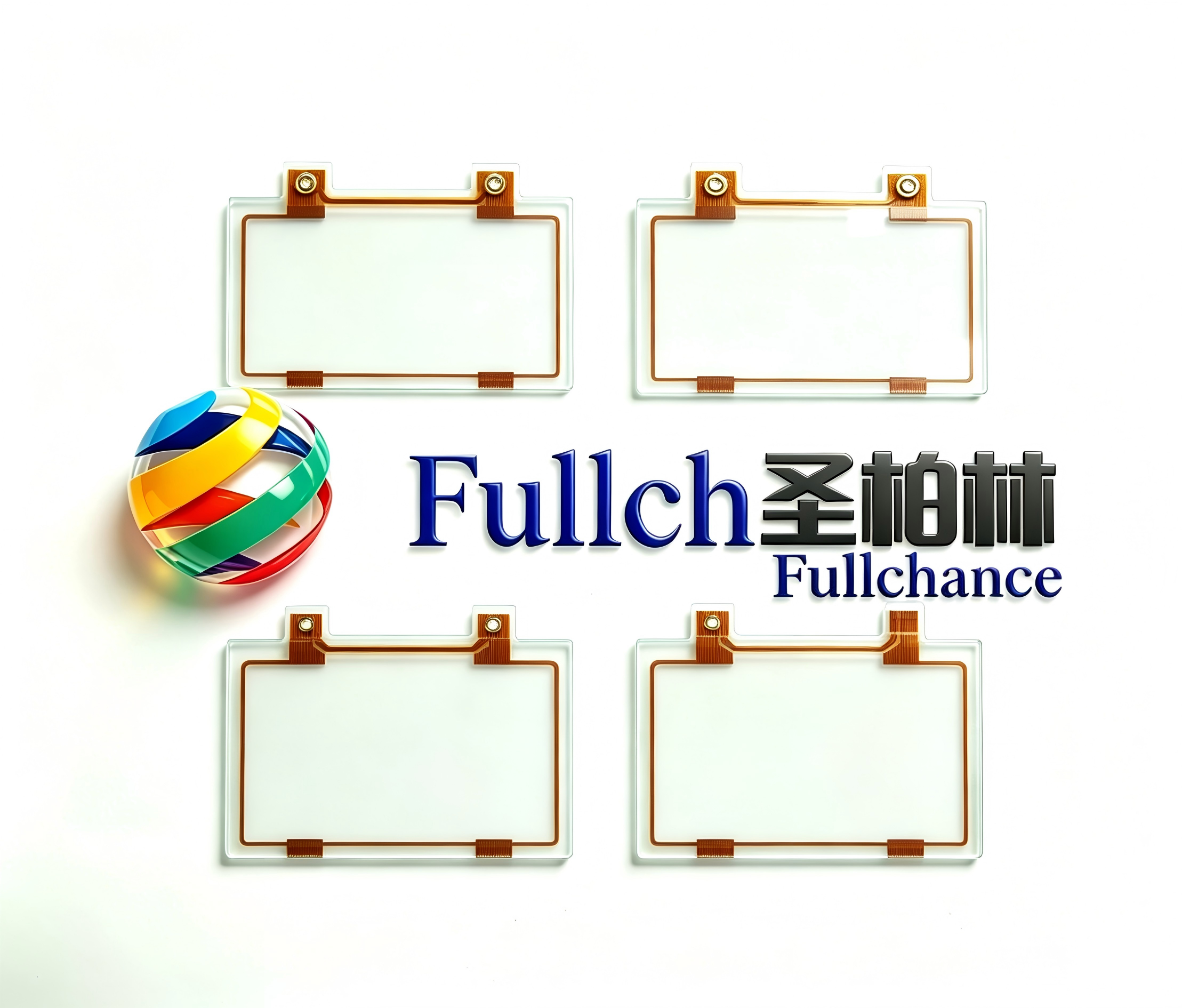

Fullchance Transparent Film Heating Element for Glass adopts ITO transparent conductive film technology. A conductive heating layer is deposited on the surface of the glass substrate, which generates Joule heat when powered on to realize defogging, defrosting and anti‑condensation on glass surfaces. It does not block optical vision and balances both light transmittance and uniform heating performance. Customization for flat and slightly‑curved glass is supported, and it is widely applied in optics, instruments, security, medical care, bathroom, vehicle‑mounted and other fields.
Key Features
Key Features
High Light Transmittance: Imaging and observation remain undisturbed with clear visuals under strong light, and no metal wires block the line of sight.
Full‑Area Uniform Heating: The entire thin‑film generates heat with even temperature distribution and no local hot spots, preventing glass cracking caused by uneven heating and cooling.
Fast Heating Response: Heats up within seconds to rapidly remove dew and frost. It features low thermal inertia and sensitive temperature‑control response.
Ultra‑thin Integrated Design: The heating layer is integrated onto the glass surface for a slim and lightweight structure. It can be bonded with adhesive backing to save installation space.
Powerful Customization: Size, power, voltage and electrode lead‑out methods are all customizable. Float glass and quartz glass substrates are supported; flat and micro‑curved surfaces are both achievable.
Safe and Reliable: No open flame and low electromagnetic interference, suitable for long‑term continuous operation of industrial equipment.
Main Technical Specifications
Main Technical Specifications
Substrate: Float Glass / Quartz Glass
Light Transmittance: 70%‑85% (550nm)
Operating Voltage: AC/DC 1‑1000V, customizable
Power: Designed on demand above 0.1W
Maximum Temperature Resistance: 130℃
Normal Operating Temperature: 25℃‑120℃
Substrate Thickness: Available per customer requirements
Size Range: Minimum 10×10mm, Maximum 370×470mm; circular up to Φ300mm
Electrode Type: Silver‑paste electrode, FPC/ACF compression bonding lead‑out
Note: This product does not feature PTC self‑limiting temperature function. It is recommended to use it with a temperature controller and temperature sensor in practical applications.
Typical Application Scenarios
Viewing windows for security surveillance cameras, observation windows for optical instruments
Heated observation windows for laboratory analytical instruments and microscopes
Anti‑fog bathroom mirrors and heated bathroom glass
Defogging and defrosting for automotive rear‑view mirrors, windshields and helmet goggles
Condensation prevention for outdoor display screens and industrial control touch panels
Observation windows for medical equipment and observation windows for biological cell culture
Ice and fog prevention for observation glass windows of ships and special‑purpose equipment
Our Advantages (Fullchance)
Years of experience in developing transparent‑film heating elements, supporting micron‑level patterned etching design.
Customization based on customer drawings is available; evaluation samples can be provided with short sample lead‑time.
Full‑process production with 100‑percent sampling inspection for electrical and optical performance.
OEM/ODM services supported; assistance for customers in preliminary solution selection.
Dedicated business engineers available to assist in evaluating complete solutions covering power, light transmittance and temperature control.
Information Required for Model Selection (Customer Inquiry)
Glass size, thickness and shape (flat / curved)
Target operating temperature and heating‑up time requirements
Power supply voltage and power requirements
Light transmittance specification requirements
Service environment (humidity, outdoor or indoor usage, condensation and frosting working conditions or not)
Electrode lead‑out method and installation method (adhesive backing / clamping mounting)
