Innovative Method Reduces Heater Costs

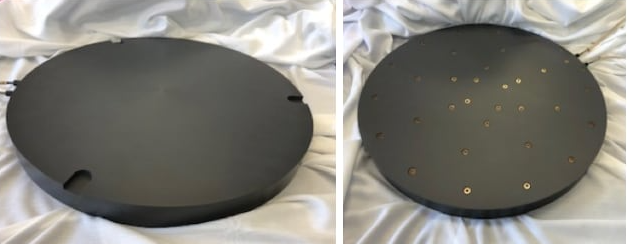

Fullchance has developed this 300‑millimeter aluminum heater chuck. This chuck is not brazed; it uses countersunk set screws to compress two plates. The heater surface specifications are 0.003‑inch flatness and 0.005‑inch parallelism. With a 208‑volt power supply at 9.7 ohms, the heater can start at 25°C and rise from 100°C to 465°C within 23 minutes.

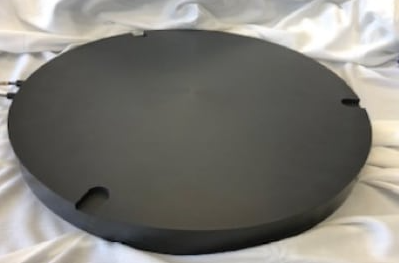

A high‑performance 300‑millimeter tall heater delivering excellent uniformity. The heater maintains 435°C (±1%).
|
|
Features
• Temperature up to 435°C @ ±2% or better
• Internal components must withstand temperatures up to 600°C
• Anodized surface for electrical isolation
• 208 Volts, 9.7 Ohms, 4,460 Watts (+5% / -10%)
• Thermocouple bore located at center (variable)

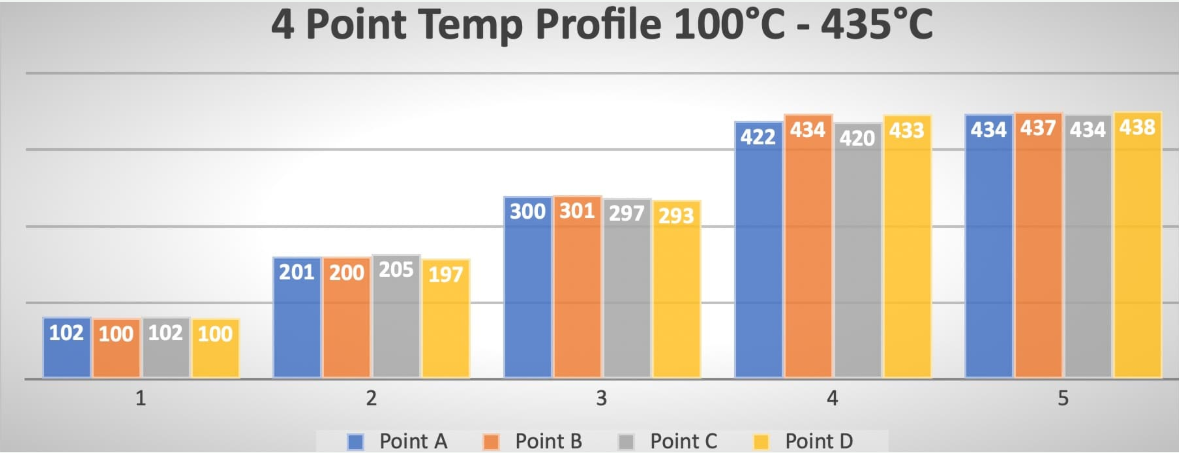

• 4‑point temperature distribution on the heater top surface
• One infrared sensor for each of the 4 point locations
• Surface finish: hard‑coat anodizing per MIL‑A‑8625F, Type 3 Class 1 hard‑coating thickness
|
 |
