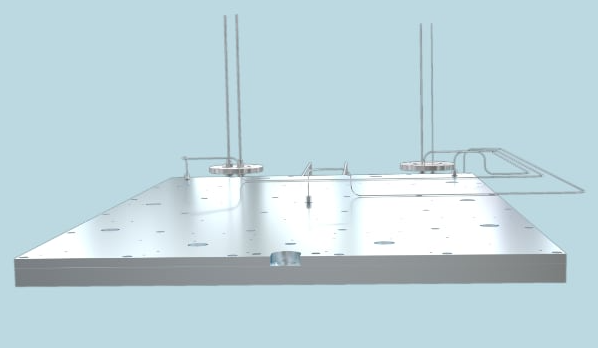

Electronic processing that can be used for next‑generation displays such as computer monitors and smartphones in vacuum and atmospheric environments. The organic material layer added between the electrodes (cathode and anode) can be deposited on the substrate using a vacuum heater press plate. |
|
Specifications
• Plate body material: Aluminum
• Size: from 6”² to 40”²
• Internal heat source material: 304 stainless steel
• The internal heat source can withstand temperatures <650°C and is electrically isolated
• Surface flatness: 0.0005” to 0.002”
• Parallelism: 0.005”
|
Surface Finish: Specific Applications
• Teflon™ leads require a cold section on the heat source
• Dual flanges, (1) for heat source, (1) for sensor
• Type "K" thermocouple positioned at locations for uniformity determination
• Voltage range: 24 V to 480 V
• Power range: 500 W to 11,000 W (+/-10%)
|
