Our custom multi‑functional series delivers comprehensive services and provides you with the tools required for any application. |
We have developed a series of cost‑effective sample heaters that can be easily customized with optional additional features, such as water cooling,
sample rotation and various sample mounting options.
sample rotation and various sample mounting options.

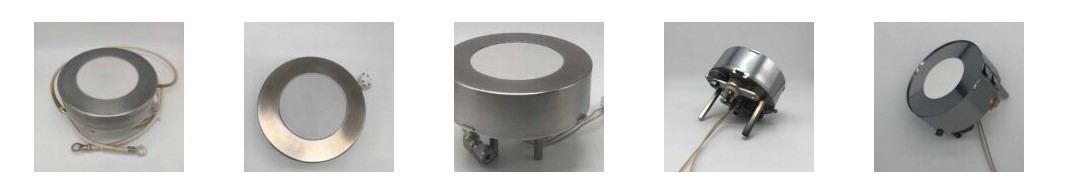

The Fullchance multi‑functional heater also delivers outstanding performance, featuring high power density for extremely fast heating‑up times, a
low‑mass body to reduce cooling time, and excellent thermal uniformity across the entire hot zone.
low‑mass body to reduce cooling time, and excellent thermal uniformity across the entire hot zone.

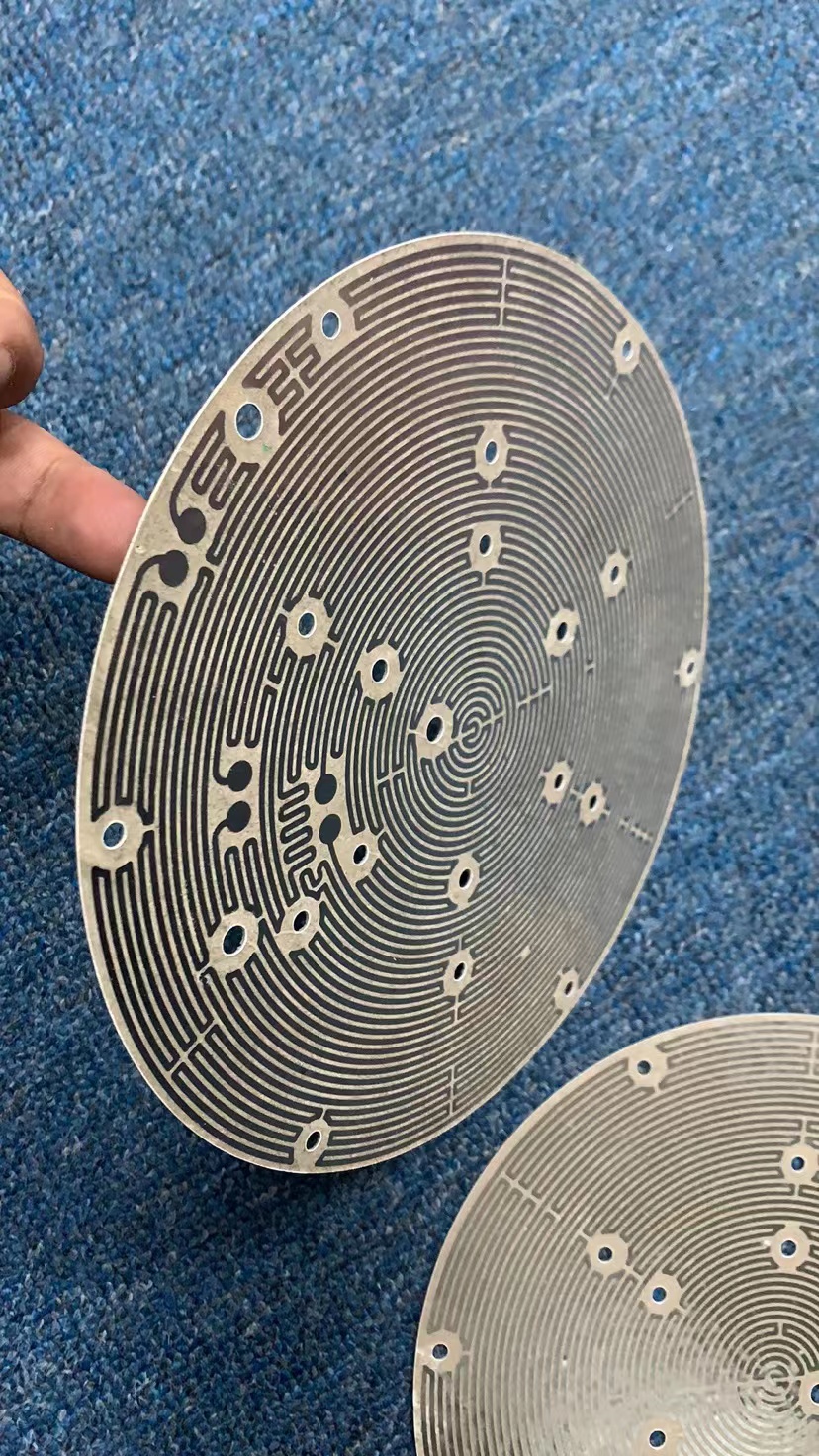

Our sample heaters are manufactured with different body and element materials to suit a wide range of applications and temperatures, and are
available in standard diameters from 2 inches to 6 inches.
available in standard diameters from 2 inches to 6 inches.
Customize Your Heater
Please contact our technical sales team immediately if you require assistance or larger heater sizes. Additional options include, but are not limited to:
• Water cooling to minimize heat load on chambers and other equipment

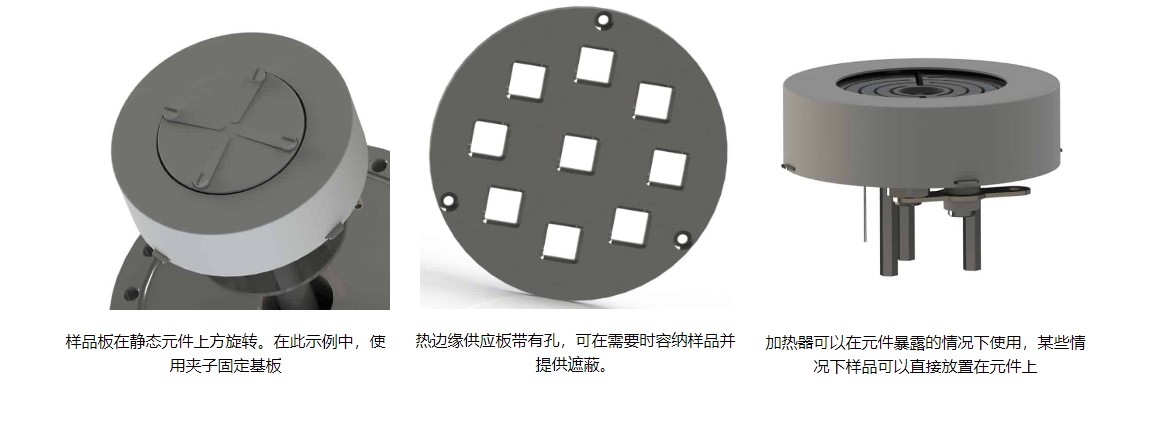

• Sample holder clamps, masks or retainers
• Flange or heater‑stage mounting (for rotation and sample transfer)
• Sample biasing (DC or RF up to 1000W)
• A second thermocouple
• Power supplies
• Temperature controllers
• Spare elements
Specifications
800°C ceramic top‑plate temperature with Inconel elements. Suitable for high‑vacuum, O₂, N₂, H₂ environments or air
1600°C ceramic top plate temperature, tungsten element is adopted. Suitable for high vacuum, N2, H2 or inert atmosphere. Applicable to UA1 with
top plate removed
|
Part Number
|
Hot‑zone Ø
|
Outer Diameter (approx.)
|
Ceramic Top Plate
|
Type A00
|
| FC-SBL-2-800-IN-O2 | 2'' | 100 millimeters | ABN1000 | K |
| FC-SBL-3-800-IN-O2 | 3'' | 125 millimeters | ABN1000 | K |
| FC-SBL-4-800-IN-O2 | 4'' | 160 millimeters | ABN1000 | K |
| FC-SBL-6-800-IN-O2 | 6'' | 190 millimeters | ABN1000 | K |
1000°C ceramic top plate temperature, adopting graphite and SiC 3 CVD‑coated elements. Suitable for high vacuum, O₂, N₂, H₂ environments or
air
|
Part Number
|
Hot Zone Ø
|
Outer Diameter (approx.)
|
Ceramic Top Plate
|
Type A00
|
| FC-SBL-2-1000-CCC-A1 | 2'' | 100 millimeters | ABN1000 | K |
| FC-SBL-3-1000-CCC-A1 | 3'' | 125 millimeters | ABN1000 | K |
| FC-SBL-4-1000-CCC-A1 | 4'' | 160 millimeters | ABN1000 | K |
| FC-SBL-6-1000-CCC-A1 | 6'' | 190 millimeters | ABN1000 | K |
1000°C ceramic top plate temperature with CCC components. Suitable for high vacuum, nitrogen or inert atmospheres
|
Part Number
|
Hot Zone Ø
|
Outer Diameter (approx.)
|
Ceramic Top Plate
|
Type A00
|
| FC-SBL-2-1000-C2-O2 | 2'' |
100 millimeters
|
ABN1000 | K |
| FC-SBL-3-1000-C2-O2 | 3'' |
125 millimeters
|
ABN1000 | K |
| FC-SBL-4-1000-C2-O2 | 4'' |
160millimeters
|
ABN1000 | K |
| FC-SBL-6-1000-C2-O2 | 6'' |
190 millimeters
|
ABN1000 | K |
1600°C ceramic top‑plate temperature with CCC components. Suitable for high vacuum, nitrogen or inert atmosphere.
| Part Number | Hot Zone Ø | Outer Diameter (approx.) | Ceramic Top Plate |
Type A00
|
| FC-SBL-2-1600-CCC-A1 | 2'' | 100 millimeters | ABN1000 | C |
| FC-SBL-3-1600-CCC-A1 | 3'' | 125 millimeters | ABN1000 | C |
| FC-SBL-4-1600-CCC-A1 | 4'' | 160millimeters | ABN1000 | C |
| FC-SBL-6-1600-CCC-A1 | 6'' | 190 millimeters | ABN1000 | C |
1600°C ceramic top plate temperature, tungsten element is adopted. Suitable for high vacuum, N2, H2 or inert atmosphere. Applicable to UA1 with
top plate removed
| ABN1000 | Hot Zone Ø | Outer Diameter (approx.) | Ceramic Top Plate | Type A00 |
| FC-SBL-2-1600-A00-C-UA1 | 2’‘ | 100 millimeters | PBN | C |
| FC-SBL-3-1600-A00-C-UA1 | 3’‘ | 100 millimeters | PBN | C |
| FC-SBL-4-1600-A00-C-UA1 | 4’‘ | 100 millimeters | PBN | C |
| FC-SBL-6-1600-A00-C-UA1 | 6’‘ | 100 millimeters | PBN | C |
