electromechanical or thermodynamic methods. Fullchance mineral‑insulated vacuum heaters have a wide range of applications in deposition systems.
What is Physical Vapor Deposition (PVD)?
In Physical Vapor Deposition (PVD), metals and alloys are evaporated from a source, and atoms, ions or molecules are deposited onto the substrate
surface via thermal evaporation, sputtering or electron‑beam (e‑beam) techniques. The choice of technique depends on the specific type of material to
be deposited.
Magnetron Sputtering
surface via thermal evaporation, sputtering or electron‑beam (e‑beam) techniques. The choice of technique depends on the specific type of material to
be deposited.
Magnetron Sputtering
• Uses electrically generated plasma between the source and the (heated) substrate (usually glass).
• Suitable for:
◦ Transparent conductive metal oxides: InSnO or ITO are commonly used
◦ High‑melting‑point metals such as gold, platinum, titanium and chromium
Electron Beam Evaporation
• Magnets accelerate electrons in a high‑intensity beam to heat materials for evaporation.
• High‑purity, dense coatings are obtained on (heated) substrates.
• Used to deposit materials that cannot be processed by standard thermal evaporation due to low thermal conductivity.
Thermal Evaporation
• The most common and simplest form of deposition
• Requires high‑vacuum deposition conditions (10E‑5 mbar or better)
• A resistive heating element heats the source material in the resistive boat to its boiling point
• Evaporated molecules form thin‑film deposition (coating) on the substrate.
• Applicable to nearly all inorganic coatings and some organic coatings on various substrates
• More environmentally friendly
• Enables high‑purity deposition from high‑purity source materials (minimal contamination owing to high vacuum).

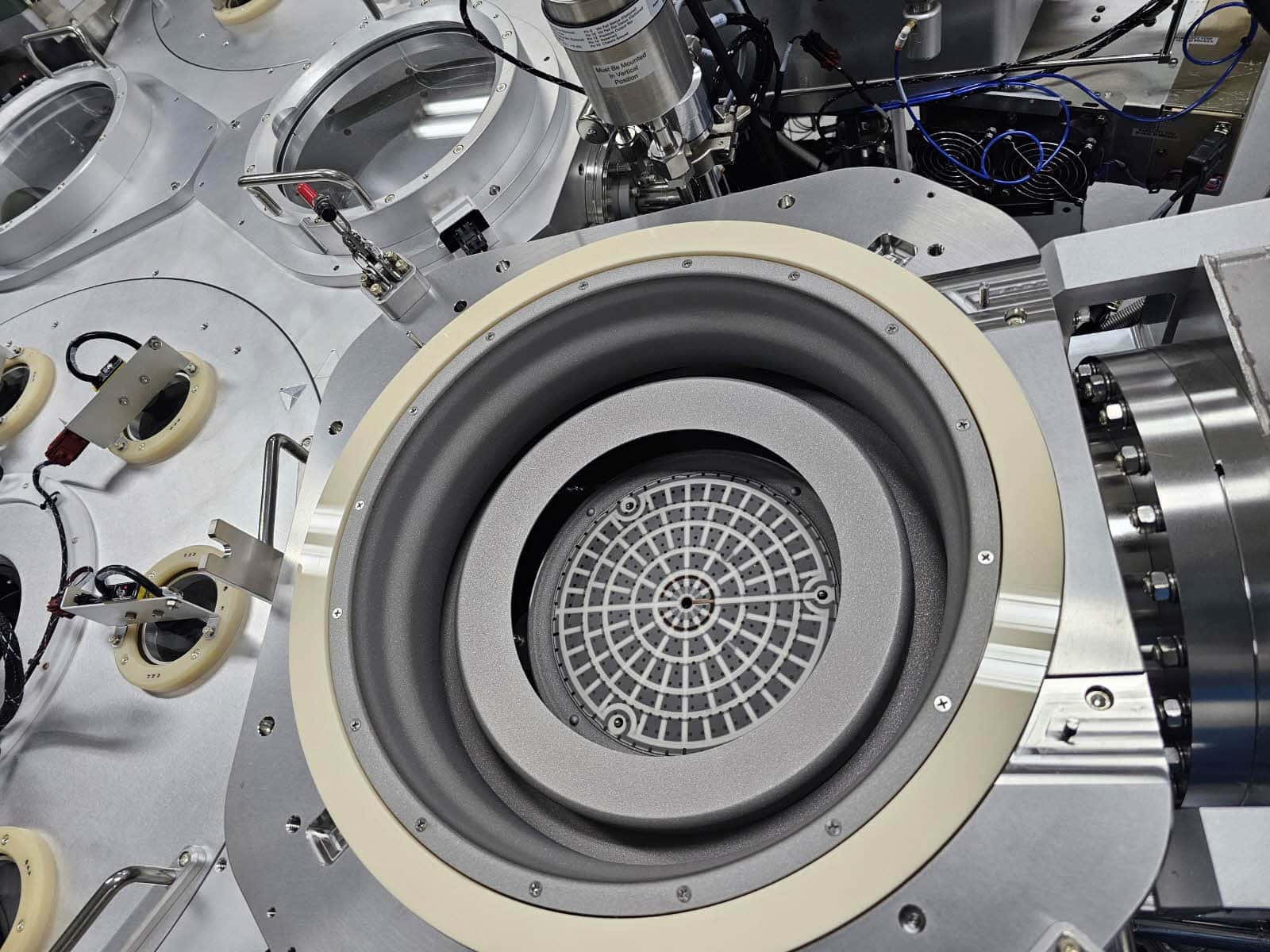

What heating solutions does Fullchance offer for PVD?
Fullchance wafer heaters are an important component of magnetron sputtering. We can also customize our substrate heaters (also known as chuck
heaters or sample heaters) to meet specific process requirements. For example, mineral‑insulated heating elements cast into heating chucks for PVD
surfaces. Miniature heaters represent another compact heating solution customized for PVD.
heaters or sample heaters) to meet specific process requirements. For example, mineral‑insulated heating elements cast into heating chucks for PVD
surfaces. Miniature heaters represent another compact heating solution customized for PVD.
In fact, Fullchance strength lies in delivering extremely precise, customized solutions to satisfy customers’ specific high‑end demands within the
semiconductor industry. For such projects, we also work closely with experts from our partner company ARi, who supply MI heaters for us.
semiconductor industry. For such projects, we also work closely with experts from our partner company ARi, who supply MI heaters for us.
What are the advantages of using mineral‑insulated heating elements for PVD?
• Temperatures up to 1000°C
• Mineral insulation makes the heating elements suitable for
◦ Harsh environments (vacuum, inert gas)
◦ Chemical resistance
◦ Excellent dielectric durability
• Custom sheath materials are available to suit any environment
• Seamless transition between the hot and cold sections of the heater
• Equal diameters for the hot and cold sections
• Termination is very simple as the cold end prevents overheating
• Suitable for high power density
• Uniform heat distribution for sources, wafers, targets or substrates
• A large bend radius enables the heating element for complex bending applications
• Precise heating for critical processes
• Thinner and lighter designs are possible
• Rapid temperature rise
• Sealed heating elements prevent contamination
• Thermocouples can be integrated into the design
