Product Specification

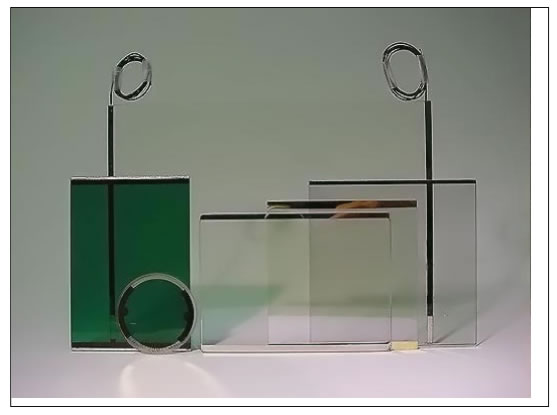

Transparent Electric Heating Film
Design Requirements: Compliant with GB4706.1‑2003 General Requirements for Safety of Household and Similar Electrical Appliances and GB4706.23‑1998 Special Requirements for Indoor Heaters.
Materials: Transparent PET film, transparent tempered glass.
Maximum Dimension: 406*356 mm.
Transparent PET Thickness: 0.100 mm, 0.125 mm, 0.15 mm, 0.175 mm.
Transparent Glass Thickness: 0.55 mm, 0.75 mm, 1 mm, 1.8 mm‑5 mm (customizable).
Haze: ＜2%; Adhesion: 100/100; Curl: ≤10 mm.
Sheet Resistance Uniformity: ＜7%.
Thermal Shrinkage: MD ≤1.3%; TD ≤1.0%.
Thermal Stability:
High‑temperature test: 80 °C, 120 h, variation ≤1.3%
Low‑temperature test: −40 °C, 120 h, variation ≤1.3%
Thermal cycling test: −30 °C ~ 80 °C, variation ≤1.3%
Temperature‑humidity test: 60 °C, 90% RH, 120 h, variation ≤1.3%
Operating Temperature: 0~120 °C.
Voltage: 0‑380 V, both DC and AC applicable.
Sheet Resistance: 6‑150 Ω.
Withstand Voltage Requirement: At room temperature, withstand 2000 V AC impulse for 1 minute as per design, without breakdown or flashover.
Insulation Resistance: Greater than 100 MΩ under normal operation.
Leakage Current: Under relative humidity 0~80% and rated operating voltage, leakage current shall not exceed 0.25 mA.
Service Life: Normal service life over 10000 hours.
The transparent heating film transmits more than 85% of visible light. Fine‑line heating elements extend service life and improve performance. Integrated temperature sensor is optional. Available in rectangular, circular or irregular shapes, with uniform or configured heating patterns. It can be equipped with integrated RTD sensors or controlled by non‑inductive temperature controllers. Suitable for low‑temperature operation of LCDs and other light‑transmission applications.
Wide range of applications: helmet visor defogging, motorcycle helmets, outdoor monitor heating & defogging, camera lens heating & defogging, LCD heating, snow‑environment lens heating and anti‑fogging, outdoor portable instruments, cockpit displays, shock‑resistant computers, outdoor card readers, portable and on‑board computers, anti‑fog windows for constant‑temperature‑humidity chambers, optical lenses, LCD screens, indoor & outdoor instruments and meters, video cameras, eyeglasses, etc.
