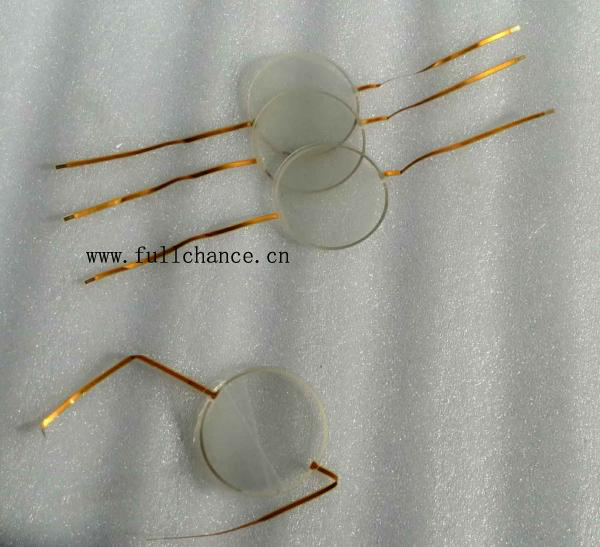

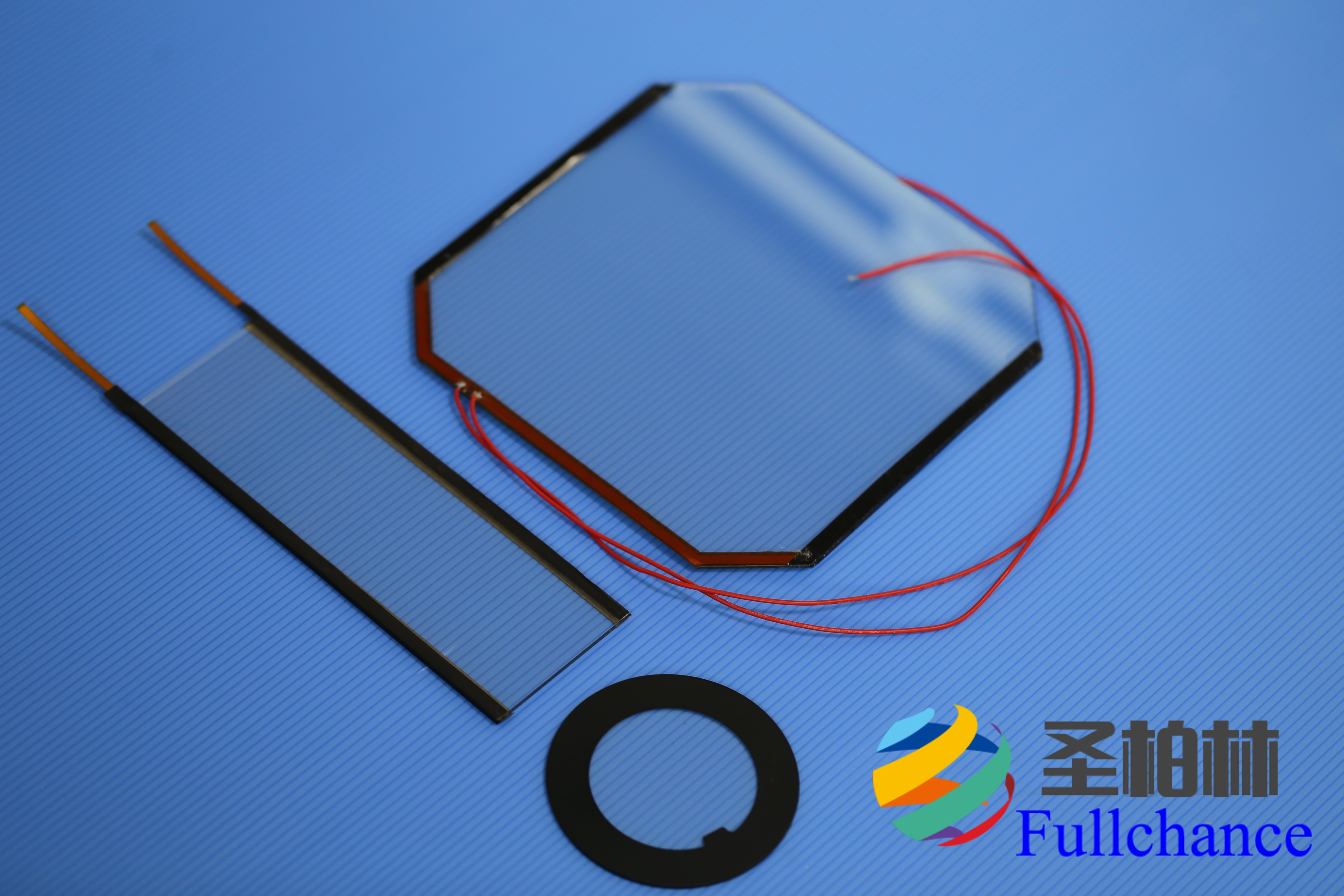

Monitor Lens Defrosting Heater Sheet
Product Introduction
The monitor lens defrosting heater sheet is an electric heating element manufactured by patterning special metal foil into various resistance circuits and encapsulating them between insulating PET films. It features planar heating, high thermal efficiency, energy‑saving and low power consumption, fast temperature rise and low thermal inertia. With flexible material, it enables uniform heating for non‑flat objects. Its operating temperature can reach up to 110℃. The service life is 10 times longer than that of traditional heating‑wire heating elements. It generates no open flame for high safety and reliability, delivers precise temperature control and low thermal inertia, and boasts strong corrosion resistance. Its heat distribution can be customized. We can develop and design heating films of various shapes, sizes, voltages and heating temperatures per customer requirements, with no restrictions on operating voltage and temperature.
Features of Monitor Lens Defrosting Heater Sheet
Compared with conventional electric heating elements, the monitor lens defrosting heater sheet offers the following advantages:
Ultra‑compact footprint, extremely light weight and ultra‑thin thickness (generally less than 0.4 mm).
Excellent flexibility.
Highly flexible in shape and dimension, especially suitable for manufacturing ultra‑small flexible heating film elements.
Adopts planar heating mode and allows extremely high surface power density up to 1 W/cm². Accordingly, this product series delivers superior heating uniformity and faster heating rate.
Different heating power and temperature requirements can be satisfied for different areas, and targeted temperature distribution across the heating surface can be realized as designed.
Low thermal inertia, high‑precision temperature control and rapid response.
The insulating protective film features extremely low saturated vapor pressure and outgassing rate, together with outstanding chemical‑corrosion resistance, antibacterial performance and radiation resistance. Therefore, this heating film series is applicable to vacuum environments and service conditions exposed to oil and most chemicals (e.g. acids, chemical solvents and general alkalis).
It can be easily integrated with thin thermal‑insulation materials to form lightweight heating elements with thermal‑insulation layers.
Versions with PSA adhesive backing allow quick and convenient installation.
This product series is safe, reliable and long‑lasting.
Applications of Monitor Lens Defrosting Heater Sheet
Widely used in tank insulation devices, electro‑thermal physiotherapy pads, anti‑fog mirrors, aquarium heaters, hair curlers, hair straighteners, massagers and other household appliances and industrial equipment, as well as instruments and meters and other products requiring transparency.
