Description

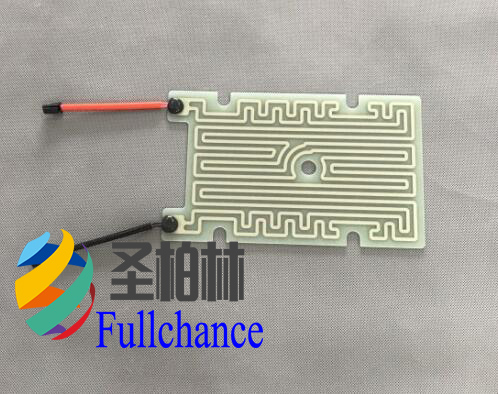

Title： FR4 heating pad
Feature：
· Lightweight,Thin (1.2mm-5mm)
· Available in 4 W/in2
· -56°C(-70°F) to 150°C (302°F) Operating Temperature
· Etched Foil
· Round or Rectangular Shapes
· Available in 3.7V- 230 V
· Optional Pressure Sensitive Adhesive(PSA)
Description :
Epoxy resin plate heating slice composed by epoxy resin slice and nichrome heater strip. We use high temperature resistance, high thermal conductivity and high insulation epoxy plate and hardness heating film made of metal heat wire. Each slice is pressed by two epoxy plate. It has the advantage of being swift heating, unit temperature, high efficiency, user-friendly, safe and long life. |
