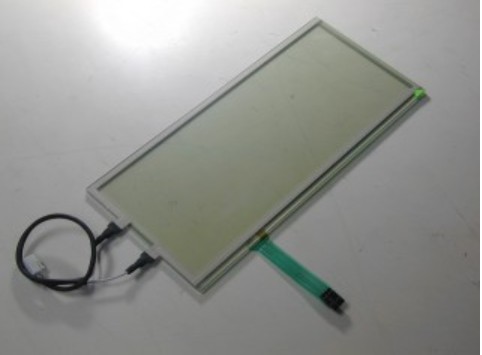

The surface of Touch Screen is resulted the fog condition from the sudden changes of environmental temperature and humidity. Use Clear Heater to raise the temperature and Touch Screen will be recovered to the clear surface.










Specification

1-1.basic profile

　



1-2. Material

1	Conductive PIN	Metal Copper-Tin
2	TAPE	Acrylic
3	PET	ITO
4	Leading Wire	Silver
5	PET	Polyester



1-3. Function

ITEM	UNIT	LIMIT min typ max			REMARK
Resistance	【Ω】	3.5	4.5	5.5
Transmission	【%】	80	---	---
Power Consumptive	【W】	26	32	41	W = V2/R



1-4. Range Of Use

ITEM	UNIT	LIMIT min typ max			REMARK
Driving Voltage	【VDC】	---	12.0	---
Operating temperature	【℃】	-30	---	+70
Storage temperature	【℃】	-40	---	+85

Other 1

Clear Heater is available for custom-made and the data of above is not the only specifications.
Please contact with Sales Dept. if you have other requirements of the specifications.
