Type : ITO Heater

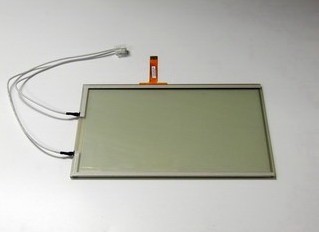

Product Name : ITO Heater+TP(8")

• Specification
• 1-1.basic profile
  　


  1-2. Material


  1	Conductive PIN	Metal Copper-Tin
  2	TAPE	Acrylic
  3	PET	ITO
  4	Leading Wire	Silver
  5	PET	Polyester


  1-3. Function


  ITEM	UNIT	LIMIT min typ max			REMARK
  Resistance	【Ω】	3.5	4.5	5.5
  Transmission	【%】	80	---	---
  Power Consumptive	【W】	26	32	41	W = V2/R


  1-4. Range Of Use


  ITEM	UNIT	LIMIT min typ max			REMARK
  Driving Voltage	【VDC】	---	12.0	---
  Operating temperature	【℃】	-30	---	+70
  Storage temperature	【℃】	-40	---	+85

• Other 1
• Clear Heater is available for custom-made and the data of above is not the only specifications.
  Please contact with Sales Dept. if you have other requirements of the specifications.
